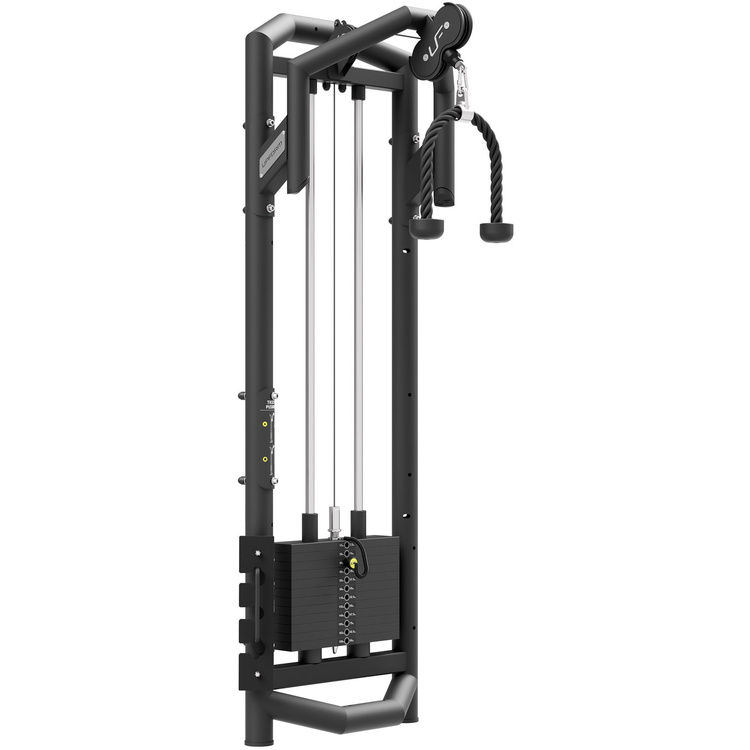

The UF-010 Triceps is part of the UpForm professional modular system, which allows you to train all muscle parts at any level of the exerciser.

Attention!

The handle shown in the photos is not included.

NOTE: In cases where the UF-010 will be used as a standalone, free-standing machine (without connection with other equipment from the F-LINE series) to obtain full stability of the structure it is necessary to anchor it to the ground, using the appropriate fixing pins for the surface.

The UpForm brand is a system solution aimed at commercial gyms and fitness clubs. Thanks to its modular design, UpForm equipment can be configured according to individual needs and capabilities.

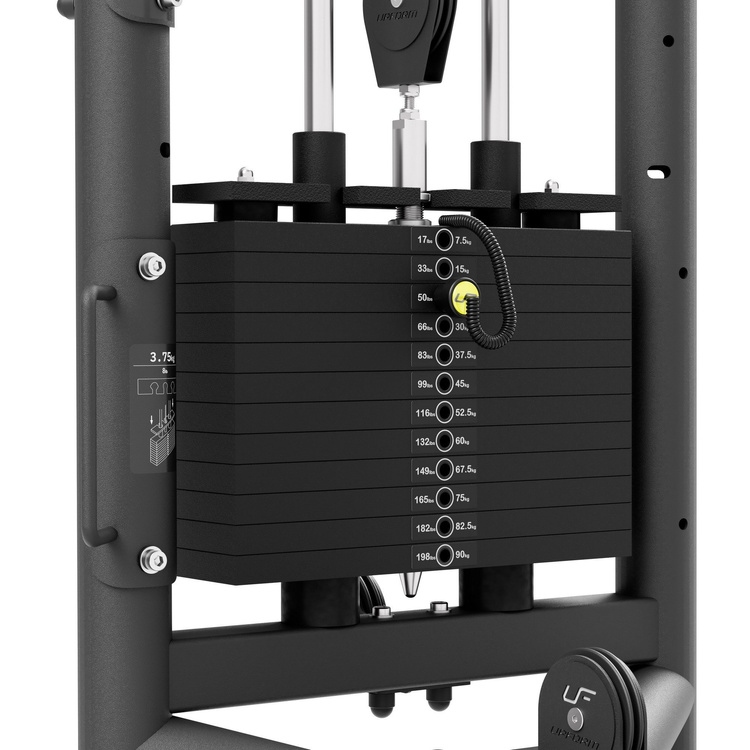

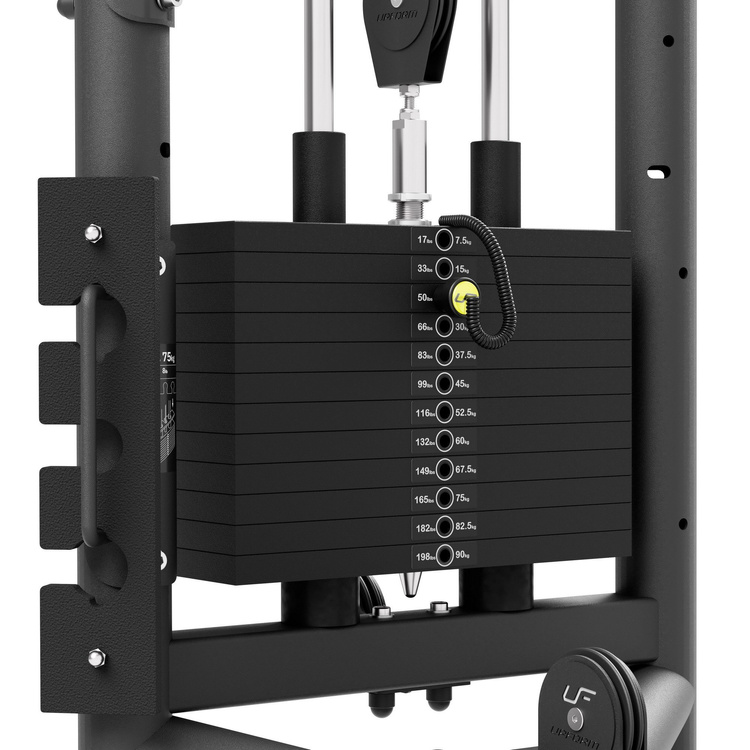

90 kg stack

The gantry station stack consists of 12 bars, each weighing 7.5 kg.

Each bar has a sticker indicating the total weight in kilograms and pounds.

The handle of the stake adjustment rod is made of aluminum, the rod itself is secured by a spiral cable.

Upper arm

The upper arm of the machine extends to a height of 210 cm. Thanks to this, people with a height of more than 200 cm will also be able to exercise on the device.

We hid all the wheels under metal grilles with the UpForm logo. The black lagged cables are finished with a solid allen screw clamp and cushioned by a rubber bumper.

Half bar 3.75 kg

The half bar allows you to reduce the load adjustment stroke from 7.5 kg to 3.75 kg. This will allow you to achieve even greater precision when selecting your training intensity level.

The 3.75 kg bar has a special holder on the frame of the device for its storage.

Technical data
Height
2033 mm
Width
654 mm
Length
662 mm
Weight
160 kg
Stack
12 x 7,5 kg
,
1 x 3,75 kg
Transmission ratio
1:1
Maximum load
93,75 kg
Profil
100 x 60 x 3 mm
,
pipe 60,3 x 3,2 mm
,
pipe 76,1 x 3,2 mm
Type of weights
weight stack
Warranty
Home warranty - 2 years
The home warranty covers devices intended for home use.
Light Commercial Warranty - 2 years
The Light Commercial warranty covers devices operating in small hotels, rehabilitation clinics, health centres, etc. The maximum working time is 4 hours per day.
Full Commercial Warranty - 2 years
Full Commercial warranty covers devices working in gyms, schools, etc. If properly maintained, the maximum operating time is 12 hours per day.
